Blackmagic Design DeckLink Duo 2 Mini
Model: BDLKDUO2LP
$739.00

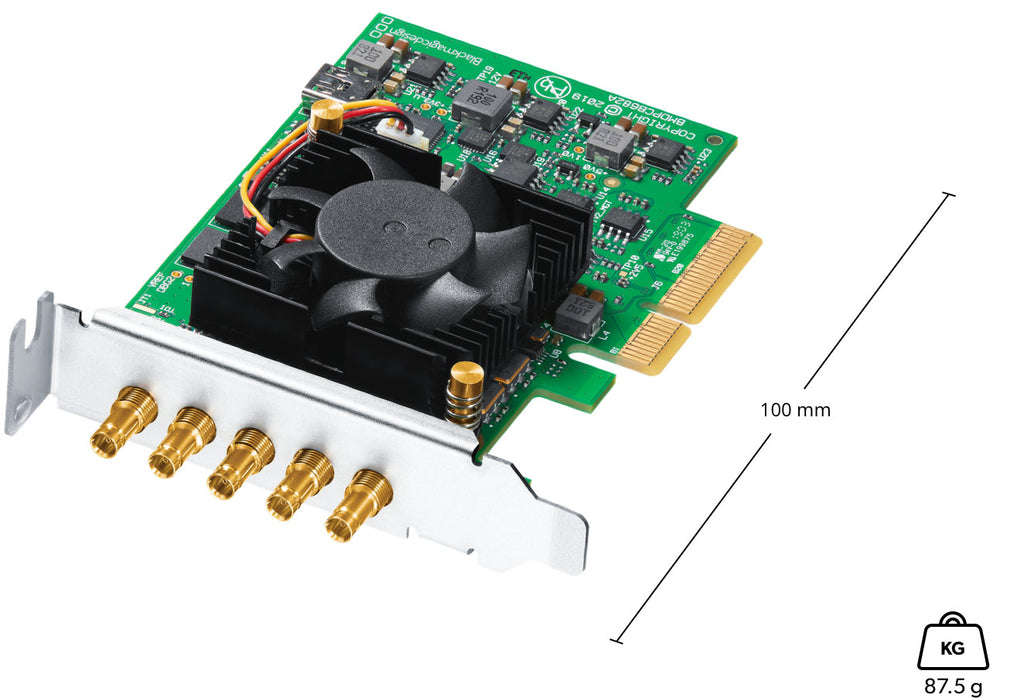

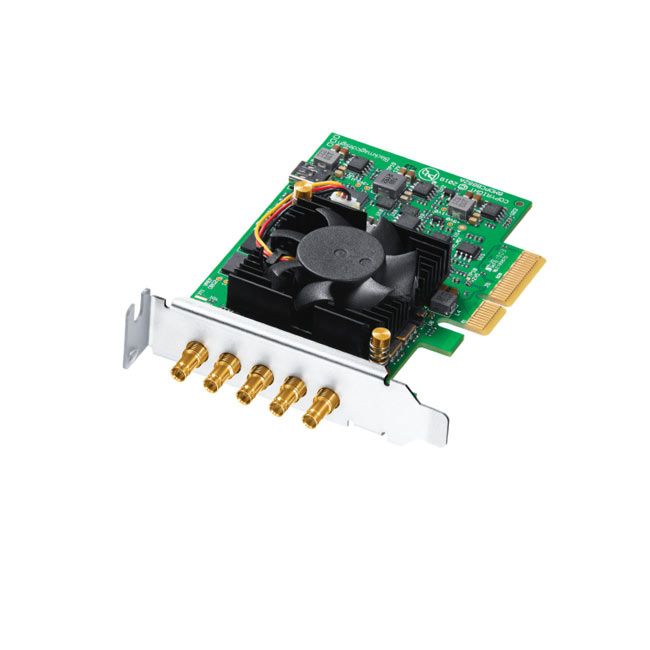

Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a compact, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
Connections
- SDI Video Inputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
- SDI Video Outputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
- SDI Audio Inputs: 16 channels embedded in SD and HD.
- SDI Audio Outputs: 16 channels embedded in SD and HD.
- Sync Input: Tri-Sync or Black Burst.
- Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
