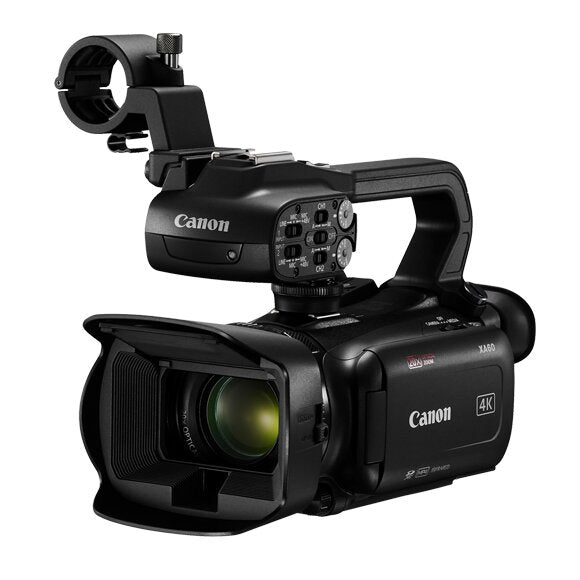

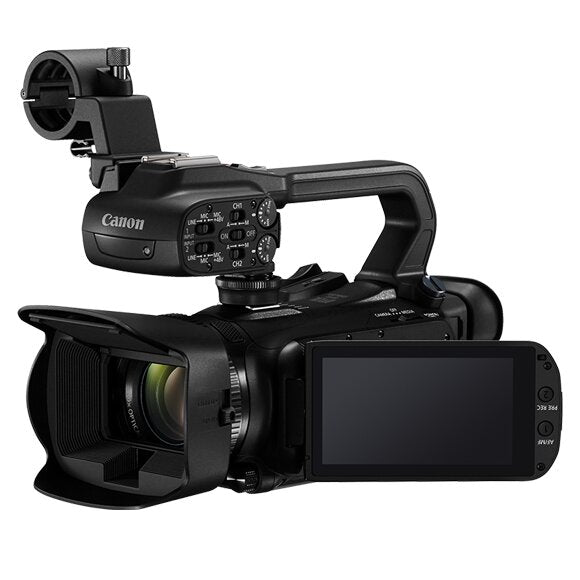

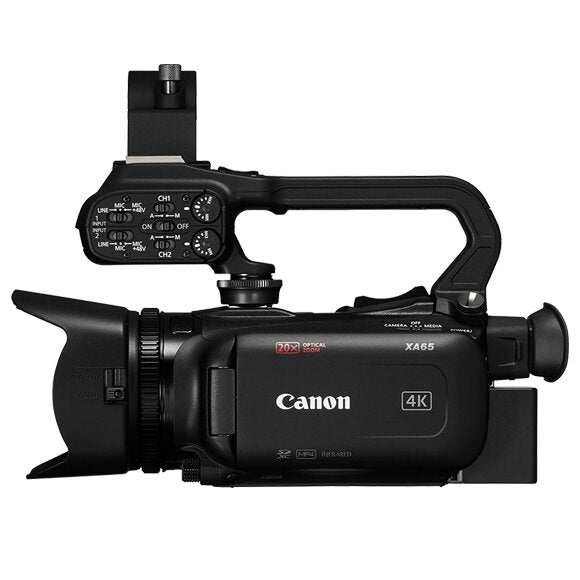

Canon XA65 4K UHD Compact Camera

Shoot high quality 4K UHD video with the compact XA65. The camera delivers outstanding oversampled HD, advanced autofocus, a Canon 20x optical zoom lens, HD livestreaming with UVC1 via a USB-C connection to a PC or Mac and can capture footage for recording or sharing later in either XF-AVC or MP4 formats.

Compact professional 4K UHD camcorder

Capture stunning 4K UHD and Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

On-Screen Display (OSD) “Time Stamp” Recording

New to XA-Series cameras, the OSD recording embeds date, time, timecode, and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly from the camera via UVC 1 to a PC or Mac computer.

Professional audio controls

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.

4K 20x optical zoom lens

The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.

Fast, precise focusing with face detection

Adjustable focusing speeds and advanced Hybrid AF system provide fast and precise focusing. Use the ultra-bright high-resolution 3.5-inch LCD display to set focus by touching the AF point on the screen. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for flexible recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.

Professional input and output

Output options include 3G-SDI, simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras using the custom picture menu.

Specifications

• Sensor -  1/2.3-inch 4K UHD CMOS sensor
• Lens
  • Zooming ratio, focal length (35 mm camera equivalent): 20x optical zoom, approx. 29.3 - 601mm (4K UHD IS off/standard IS on)/ approx. 30.5 - 627mm (Full HD IS off/standard IS on)
  • Aperture: 8 blades
  • Image Stabilizer: Optical + electronic correction
• Infrared camera supported -  YES
• Monitor -  3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel
• EVF -  0.36-inch (approx. 1.77 million dots), OLED, tiltable
• Looks -  Standard
• Movie Recording
  • MXF: YES (XF-AFC)
  • AVCHD: NO
  • MP4: YES
  • LPCM 4ch audio: YES (not available during 720 recording)
  • Simultaneous Recording: Double recoriding
  • OSD Recording: YES
  • Slow and Fast (S&F) Motion Recording: YES
  • Cinema-look filters: NO
• Recording Media
  • Built-in memory: NO
  • Memory card: SD card (2 slots)
• Professional use terminals
  • SDI terminal: YES (3G-SDI)
  • GENLOCK, TC: NO
  • XLR terminal (INPUT 1, INPUT 2): YES
• Other terminals -  HDMI, separate headphones, USB (USB Type-C), DC IN (USB Type-C), re-mote and MIC terminal (supports plug-in power)
• Accessory shoe -  Handle unit: Cold shoe
• Detachable handle -  YES (XLR terminal, built-in infrared light, mic holder, cold shoe, zoom lever, trigger, tally lamp)
• Wi-Fi -  NO
• GPS -  NO (Accessories supported)
• Lens hood with barrier -  YES
• Dimensions -  Approx. 4.3 x 3.3 x 7.2 in. / 109 x 84 x 182mm
• Weight
  • Body only: Approx. 1.65 lbs. / 750 g
  • Lens hood, mic holder unit, handle unit, BP-820 and memory card (1 pc) included: Approx. 2.51 lbs. / 1140 g

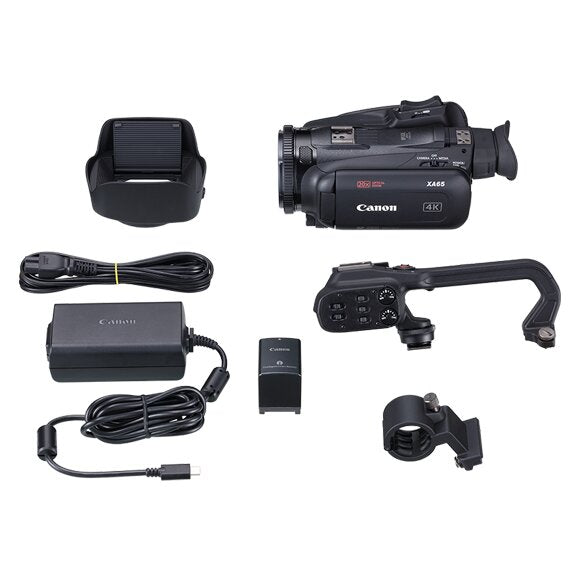

What's in the Box

• XA65
• HDU-1 Handle Unit
• PD-E1 USB Power Adapter
• BP-820 Battery Pack
• Lens Hood
• Mic Holder
