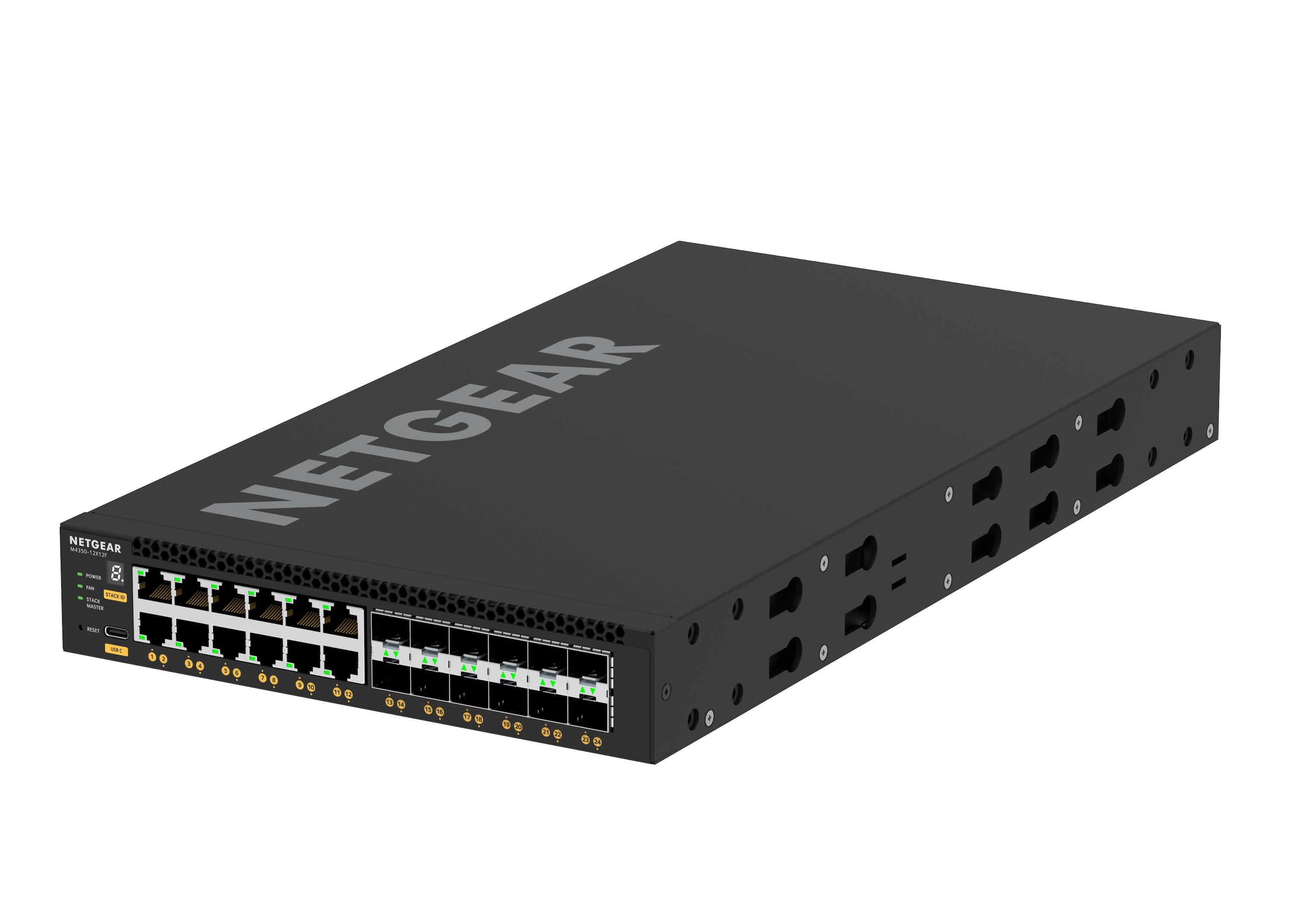

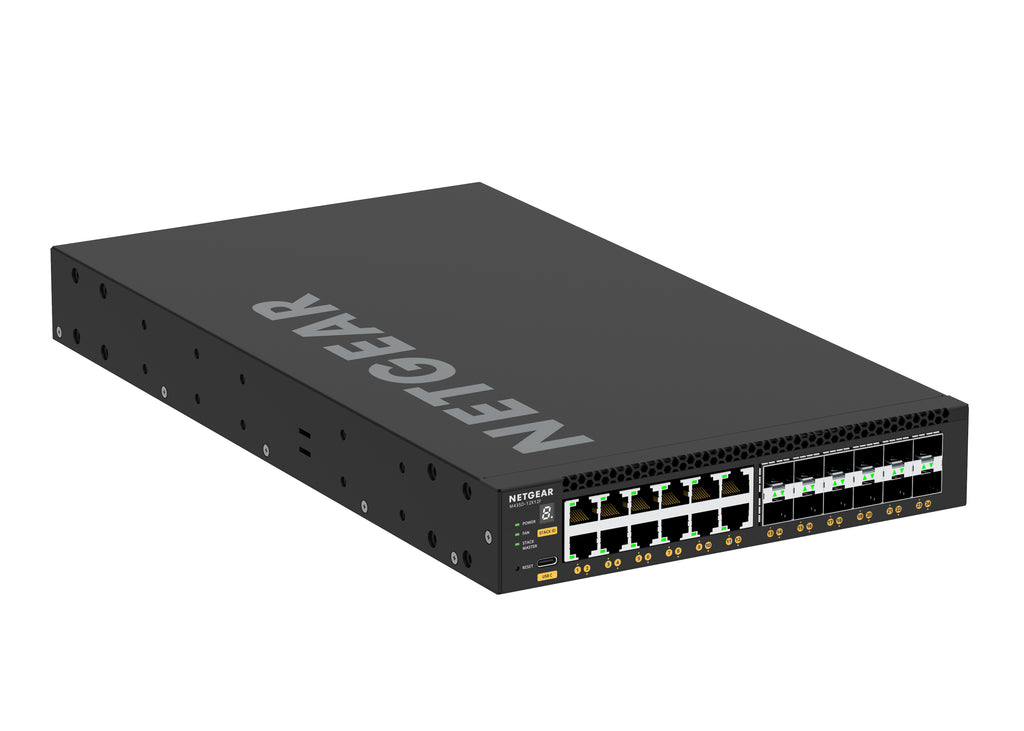

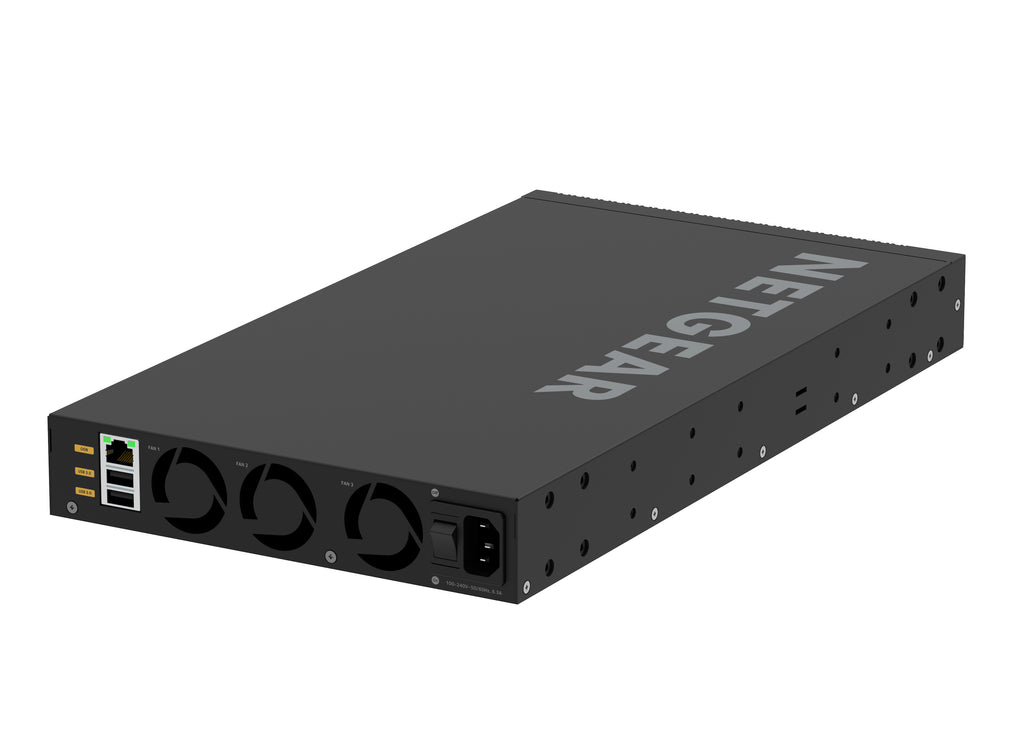

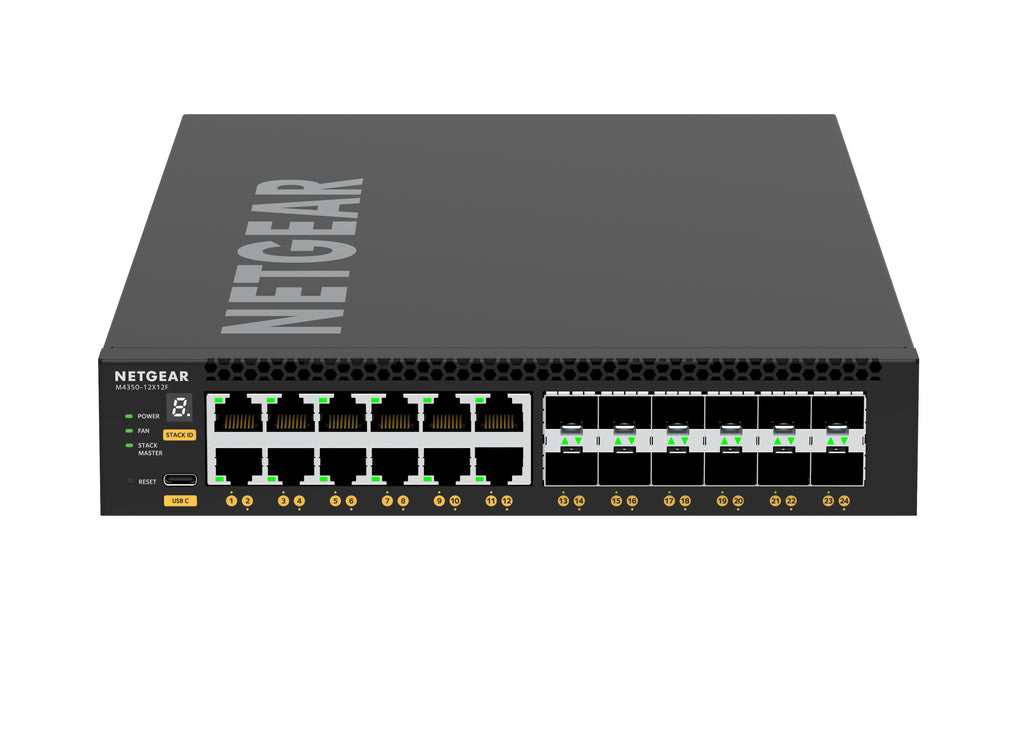

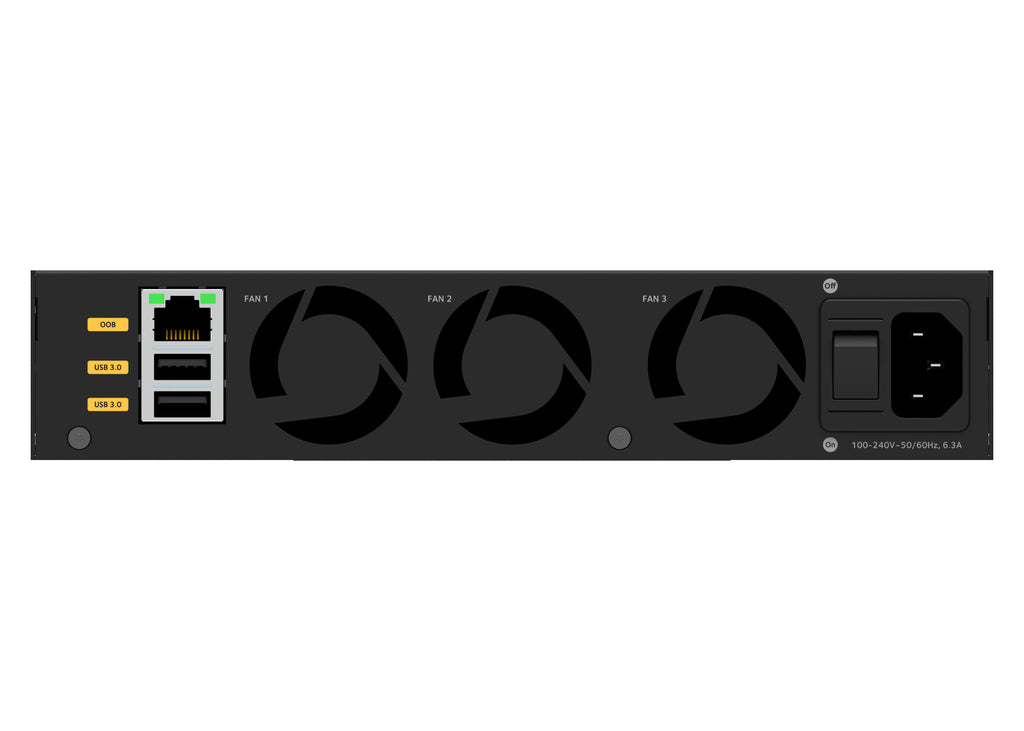

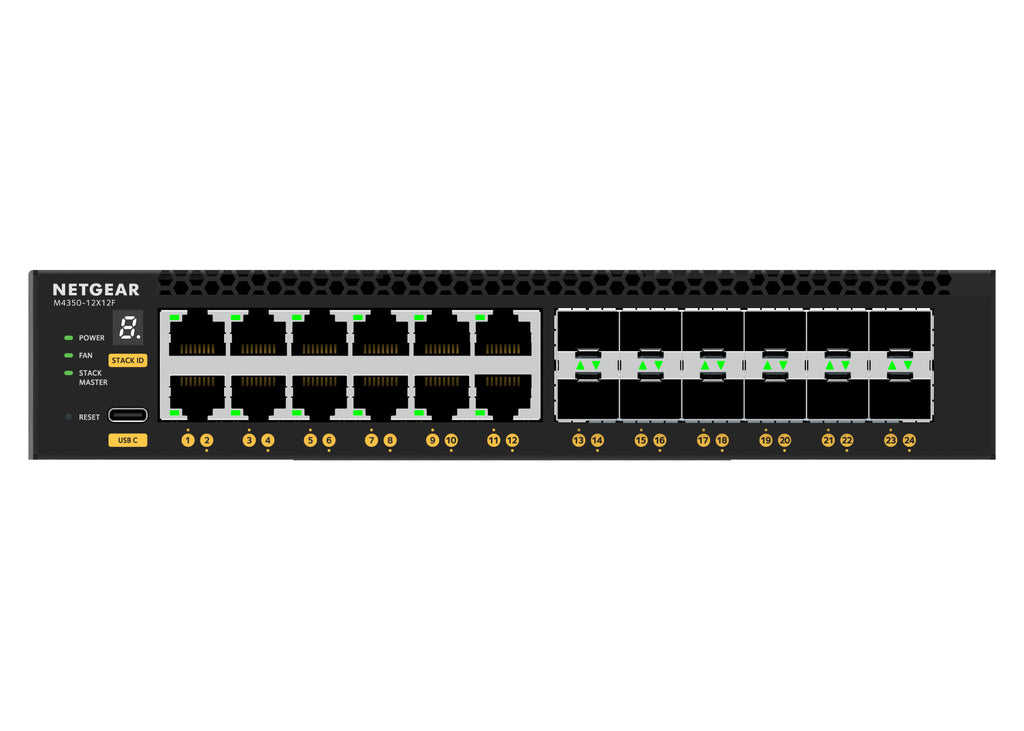

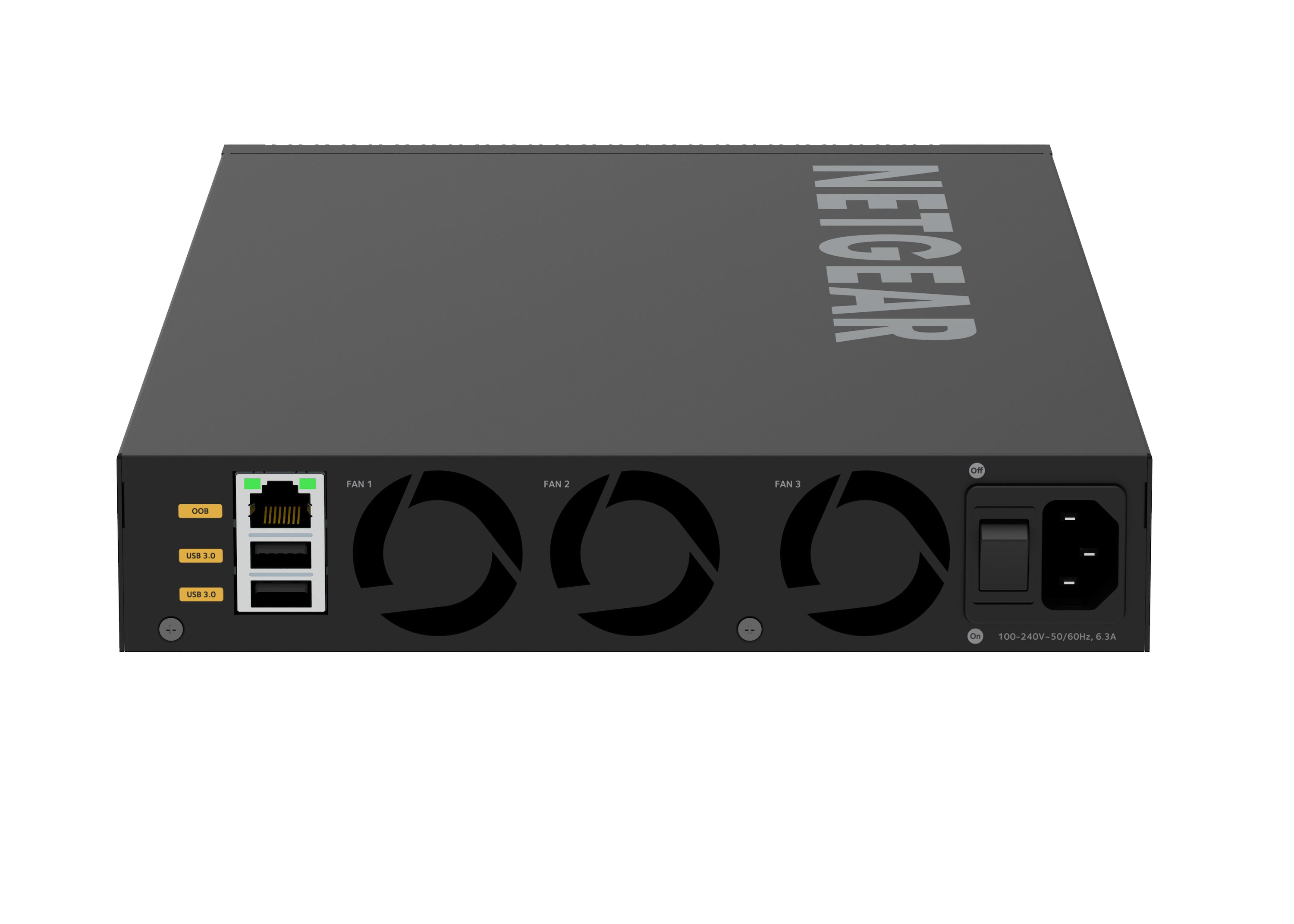

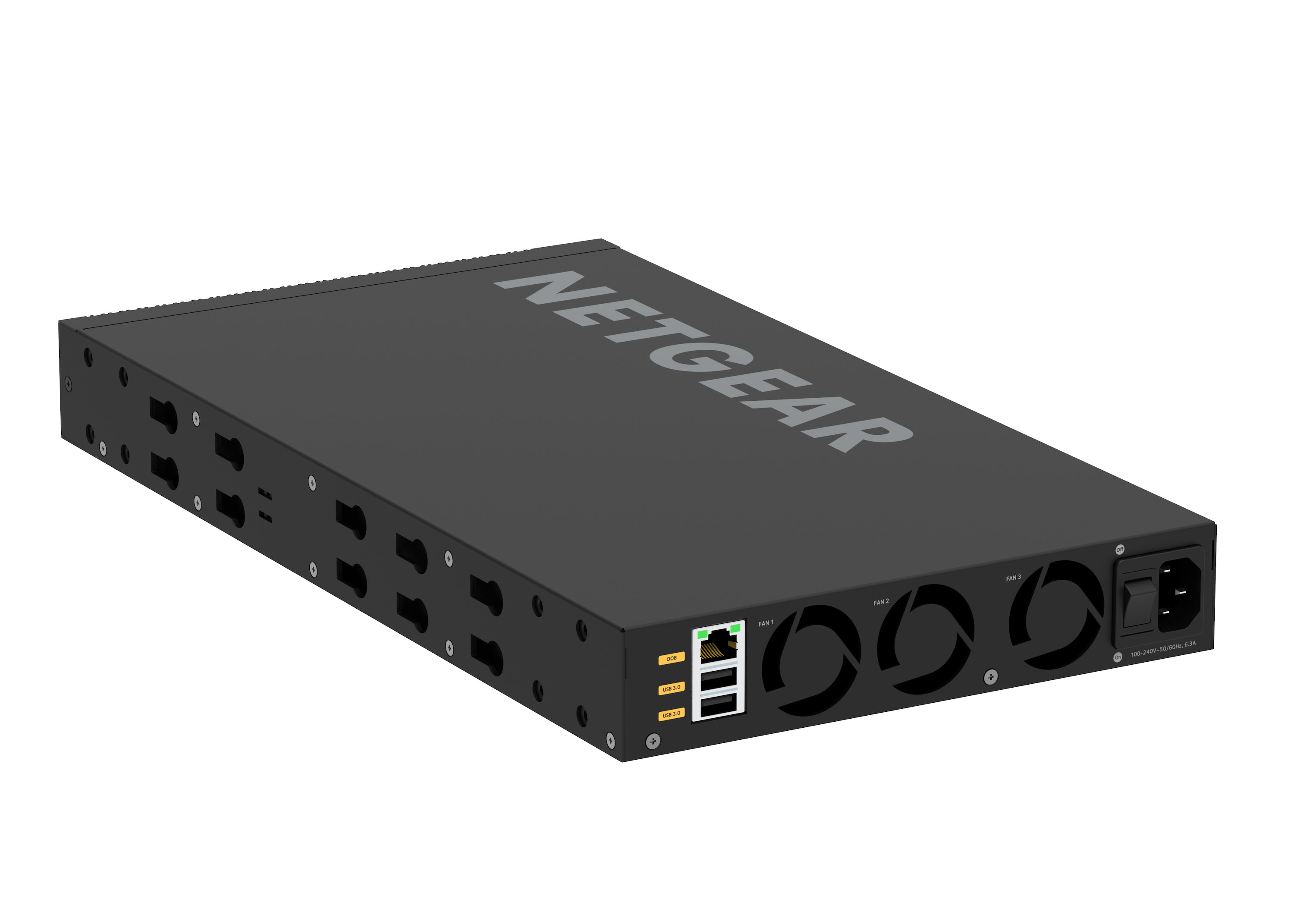

Netgear M4350-12x12F 24 Port 10Gb Multi-Gig Managed AV Switch w/SFP+

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

• 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports
• 240W internal power supply
• Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
• NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• Lifetime Next Business Day Hardware Replacement

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

M4350 AV OVER IP SIMPLIFIED

• Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.
• Multicast in an Instant - NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
• Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.
• Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS

Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

Specifications

• Primary Port Speed -  10 Gigabit / Multi-Gig
• Number of Ports -  24 (12 x 10G/Multi-Gig, 12 x 10G SFP+)
• PoE Ports / Budget -  N/A
• IGMP Support -  Enhanced (NETGEAR IGMP Plus)
• Jumbo Frame Support -  Yes, up to 12kb
• AVB Support -  Yes, included
• Acoustics -  Quiet Mode 34.4dB@25ºC
• Power Consumption
  • 95.8W/300.81Btu/hr
  • Standby without any port connection: 34W/106.76Btu/hr
• Rack Mount -  1U
• Dimensions (WxDxH) -  8.66 x 15.75 x 1.7 inches (220 x 400 x 43.2mm)
• Weight -  9.48 lbs (4.3 kg)

What's in the Box

• 1x M4350-12X12F (XSM4324)
• 1x Power cord
• 1x Console USB Type-C cable
• 1x Switch rack-mounting standard bracket set
• 1x Switch set of longer brackets for recessed mounting
• 2x Switch pairing kit for two half-width M4350 switches in a single rack space
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
