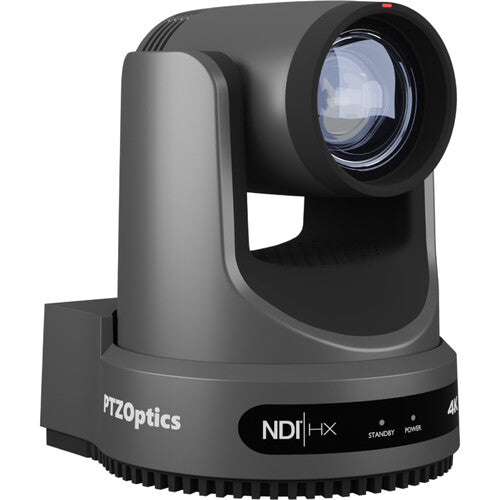

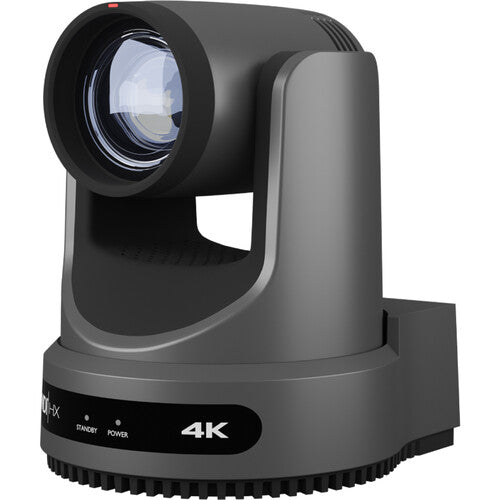

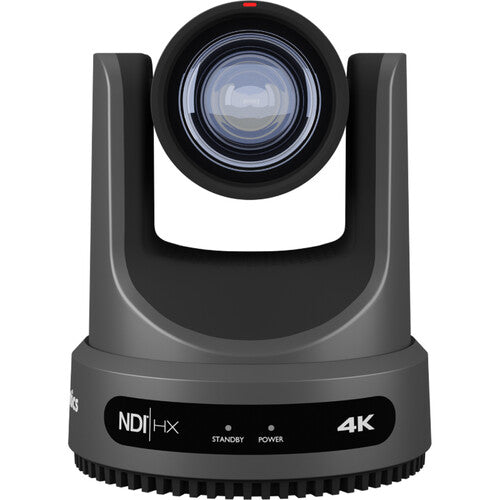

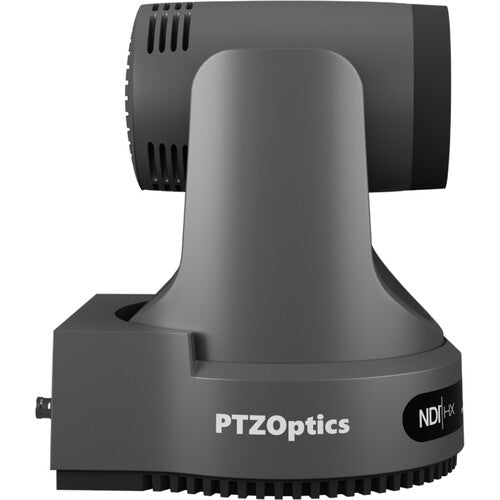

PTZ Optics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey)

The PTZOptics Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Discreet Mounting Options

Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Pan, Tilt, Zoom, Track.

Control your production from behind the scenes – or right in front of them. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Take Control Your Way

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of PTZOptics' hardware joystick controllers such as the IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

Free Software for PTZOptics Camera Users

Invigorate your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer.
Create stunning graphics and data visualizations in minutes with this easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.

Features

• UltraHD 4K (3840x2160p) video resolutions up to 60 FPS
• Built-in auto-tracking capabilities
• 20X optical zoom lens with a 60.7° horizontal field of view
• High performance in low light scenarios with Wide Dynamic Range
• 3D noise reduction with our latest “low noise CMOS sensor”
• Serial (RS232 & RS485) & IP control (LAN/WAN)
• H.264, H.265, & MJPEG video compression when IP streaming
• USB 2.0, HDMI 2.0 / 3G-SDI, NDI |HX 3 / IP streaming (SRT, RTSP, RTMP)
• PoE (Power over Ethernet) or 12VDC power supply
• Built in tally light
• Photobooth capable
• 5-year warranty

Specifications

• Image Sensor & Lens
  • Video Sensor -  1/1.8 inch, CMOS, Effective pixels: 8.42M
  • Resolution and Frame Rate
    • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p- 60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • Digital Zoom -  Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X, (960x540), 8X (480x270), 16X (256x144)
  • Field of View -  Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
  • Min Lux -  0.5 Lux @ (F1.8, AGC ON)
  • Shutter -  1/30s ~ 1/10000s
• Pan / Tilt Movement
  • Pan Movement -  ±170°
  • Pan Speed -  1.7° ~ 100°/s
  • Tilt Movement -  +90° to -30°
  • Tilt Speed -  1.7° ~ 69.9°/s
  • Presets -  255 Presets
  • Video Tracking -  Supported
  • Image Flip, Mirror and Freeze -  Supported
• Power Options
  • Power Supply -  DC 12V / PoE (802.3af)
  • Input Power -  18W (Max)
• Physical Specifications
  • Material -  Aluminum, Plastic
  • Color -  Gray
  • Dimensions (W x D x H) -  5.57 W x 5.94 x 7.91 in. / 168.4 x 141.5 x 164.5 mm
  • Weight -  3.25 lbs (1.47 kg)
  • Working Environment -  Indoor
  • Operating Temperature -  14°F ~ 104°F (-10°C to 40°C)
  • Storage Temperature -  -40°F ~ 140°F (-40°C to 60°C)

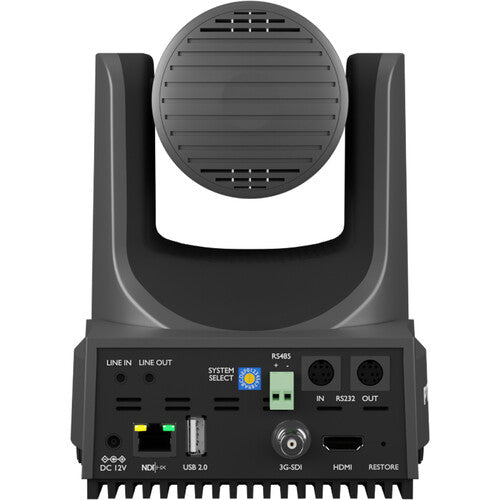

• Rear Board Connectors
  • HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port
    • 1x HDMI: version 2.0
    • 1x USB 2.0: type A
    • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
  • Audio Interface -  1x 3.5mm Line level Input
  • Communication Interface
    • 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
  • Network Interface -  RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
  • Power Jack -  JEITA type (DC IN 12V)

What’s in the Box

• Camera
• AC Power Supply
• USB A-A Cable
• RS232 Cable
• Quick Start Guide
• IR Remote
• 2 AA Batteries
