PTZ Optics SuperJoy IP & Serial PTZ Camera Controller

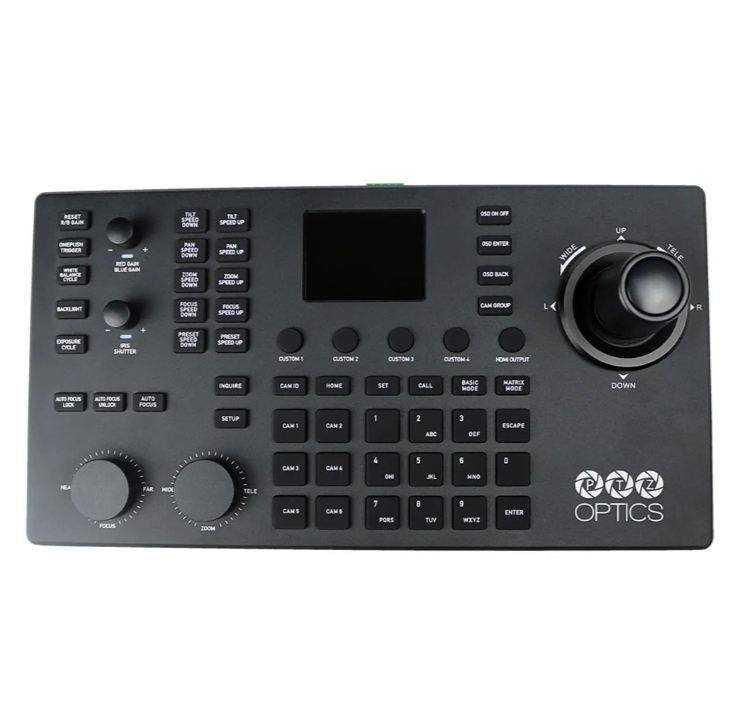

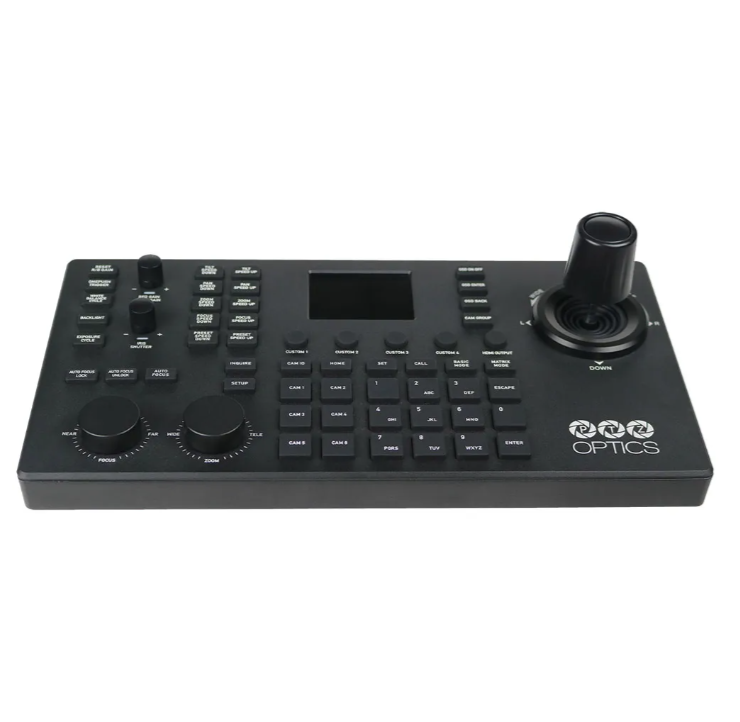

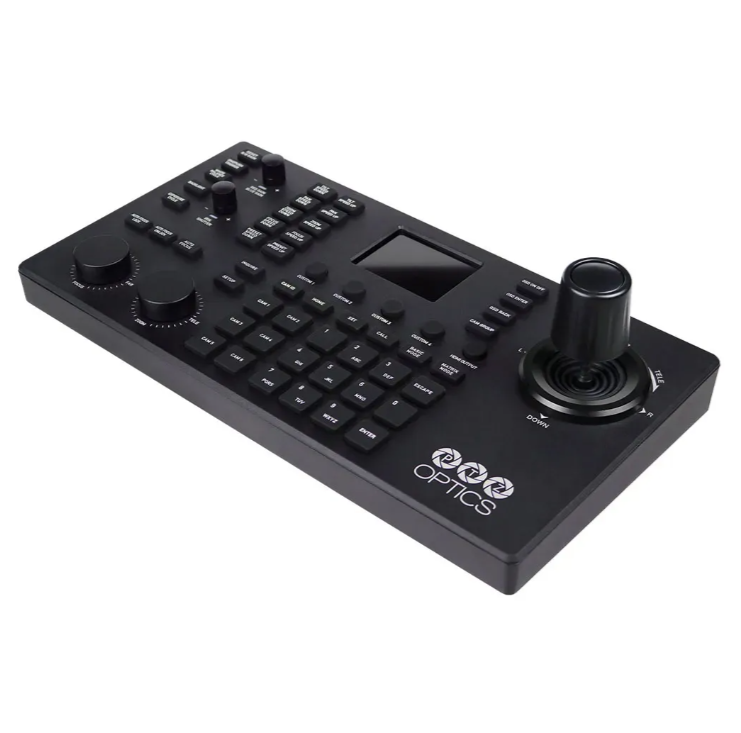

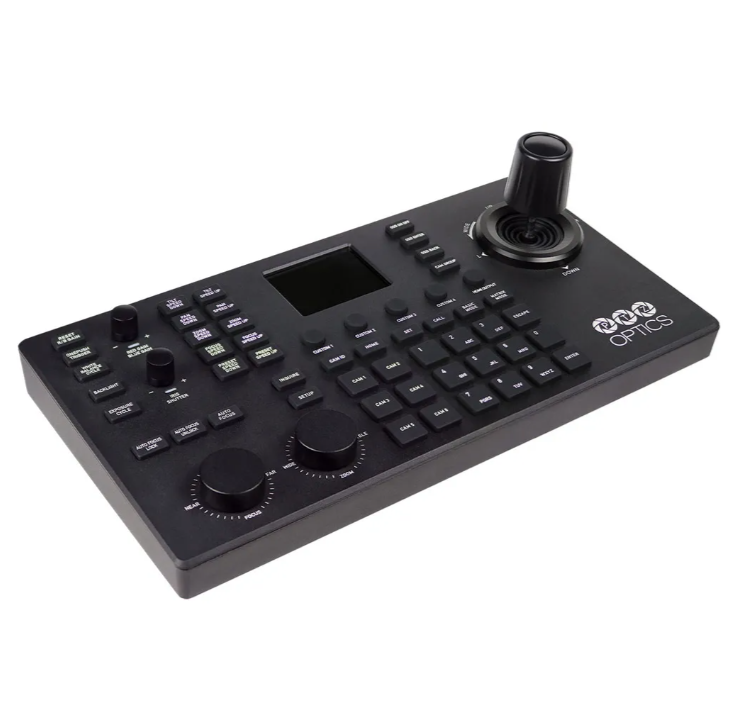

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

• Simultaneous NDI®v4|HX, IP & Serial Control for a Range of PTZ Cameras
• Create 4 Camera Control Groups with Up to 7 Devices Each
• Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
• Large LCD Screen with Controller Status and built-in decoder with HDMI output
• Basic, Basic Plus & Matrix Modes for Users of All Skill Levels
• Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets

Custom Control Across a Variety of Cameras and Devices

The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

• Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek
• If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
• Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to eight cameras each

Streamlined, Real-Time Production

The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.

• Ergonomic, rubberized controls and pressure-sensitive knobs for precise, on-the-fly-tuning, with no OSD adjustments required
• Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring
• Use the built-in decoder with HDMI output for setup and monitoring, while current configuration status is displayed on the SuperJoy’s built-in LCD screen

From Power Users to Novices, a Controller for Everyone

With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.

• Use Basic and Basic Plus mode to limit functions to presets and single-camera control
• Matrix mode enables operators to call presets across up to three cameras
• Expert users can program custom buttons for production automation

Superior Performance, Flexibility and Support – All for Less Than You Might Think

Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the SuperJoy is an ideal choice for video production crews looking to improve their workflows and streamline their production processes.

Technical Specifications

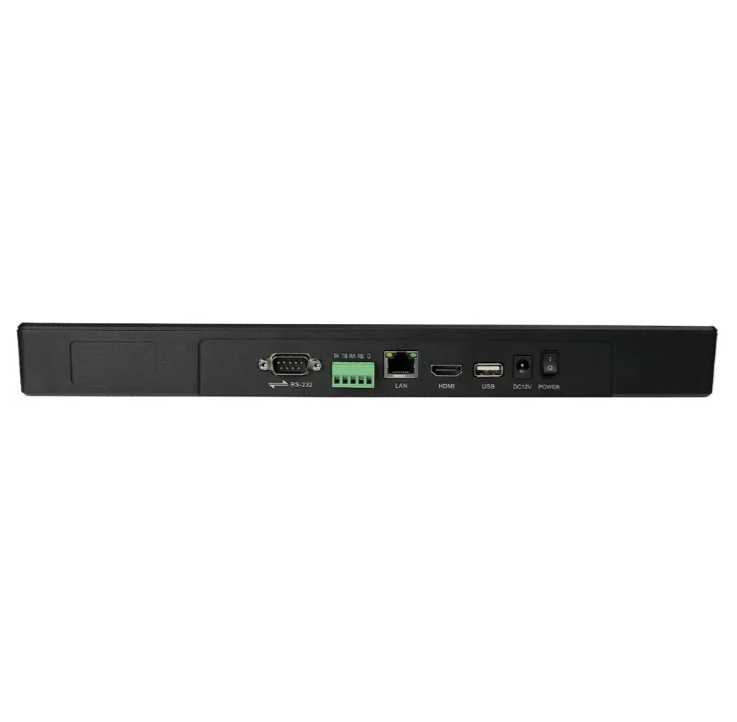

• Connections: RS-232 ,RS-485, RS-422, RJ-45
• Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
• Max Cameras: 28 cameras total (4 groups of 7 channels)
• Baudrate: 1200~19200bps
• Recommended Max Distance:
  • RS-232/RS-422: 50f / 15m
  • RS-485: 3,937ft  / 1200m
  • Ethernet: 328ft / 100m
• Power: 6W | 12VDC / PoE(802.3af) (Only use one (1) power source at a time.)
• Weight: 3.75lbs / 1.70kg
• Dimensions (in.): 13.94W x 7.05D x 3.98H

What’s in the box?

• PT-SUPERJOY-G1 Joystick Controller
• 12V 2A DC International Power Supply
• RS-232C cable 8ft (2.4m)
• PT-SUPERJOY-G1 Quick Start Guide
