X-keys XKE-64 USB Replay Controller for vMix (XK-64)

X-keys XKE-64 USB Replay Controller for vMix (XK-64)

Model: ‎XKE-64 Replay

$1,279.99

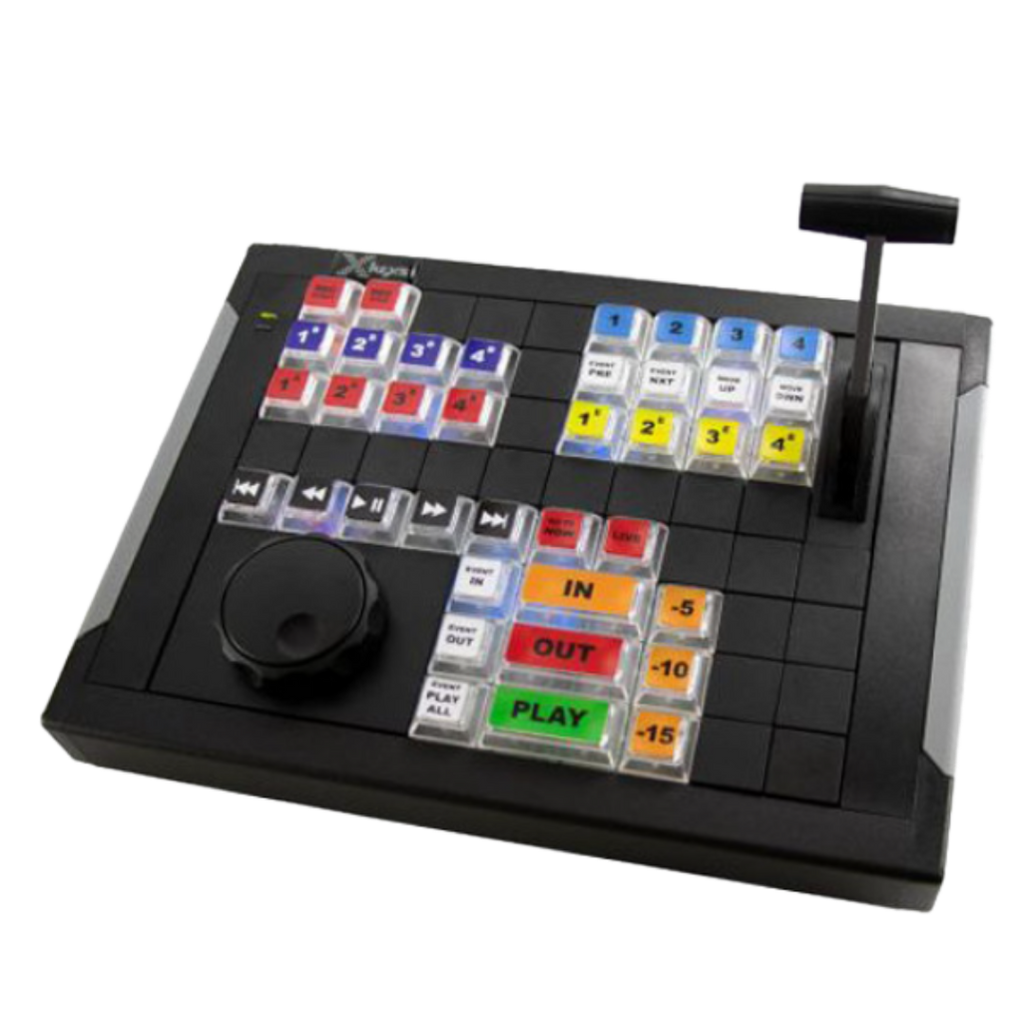

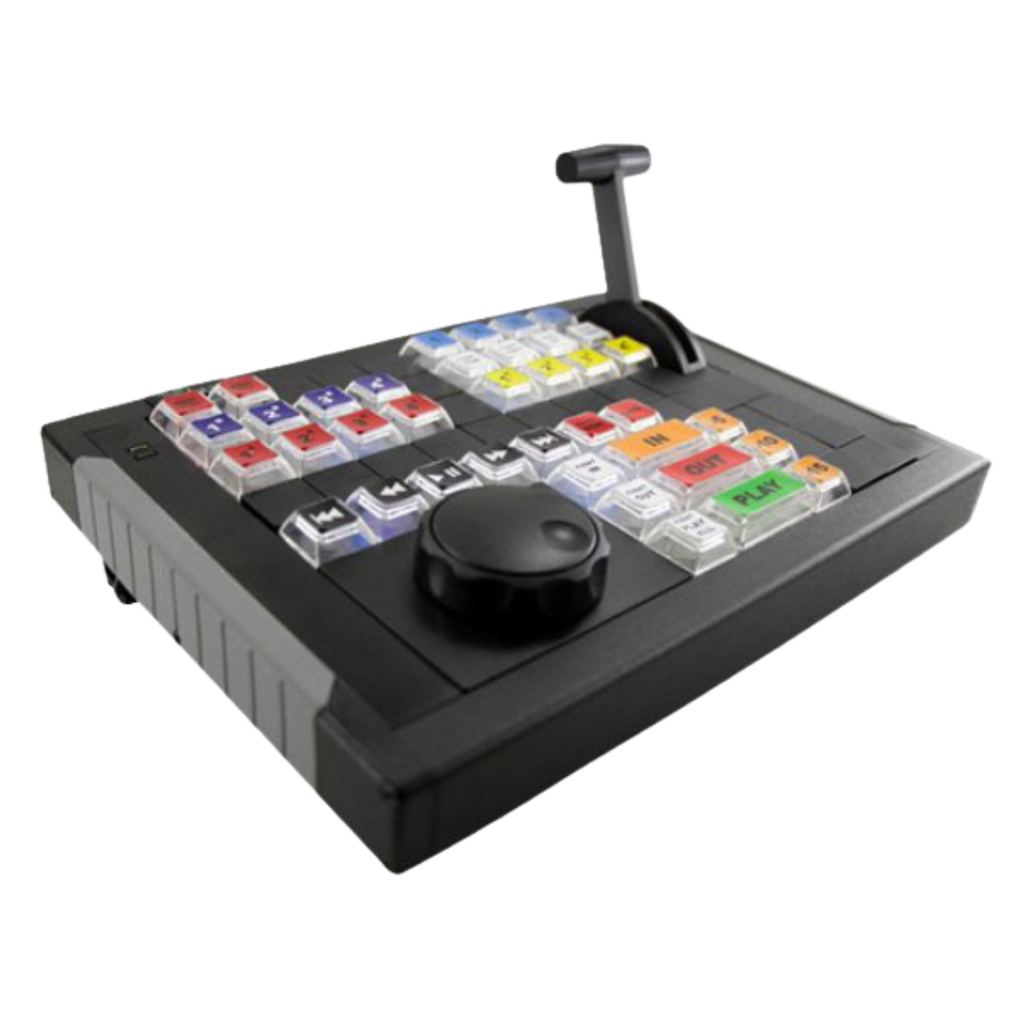

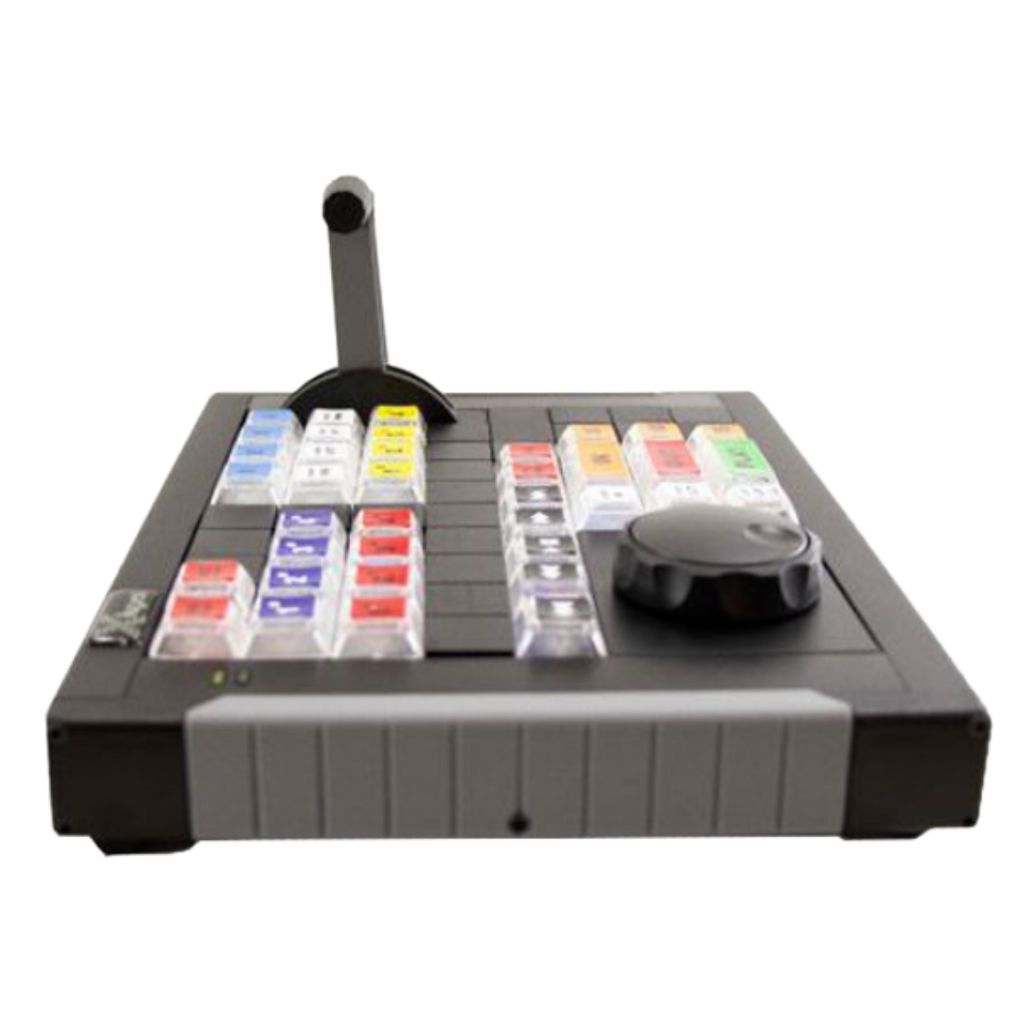

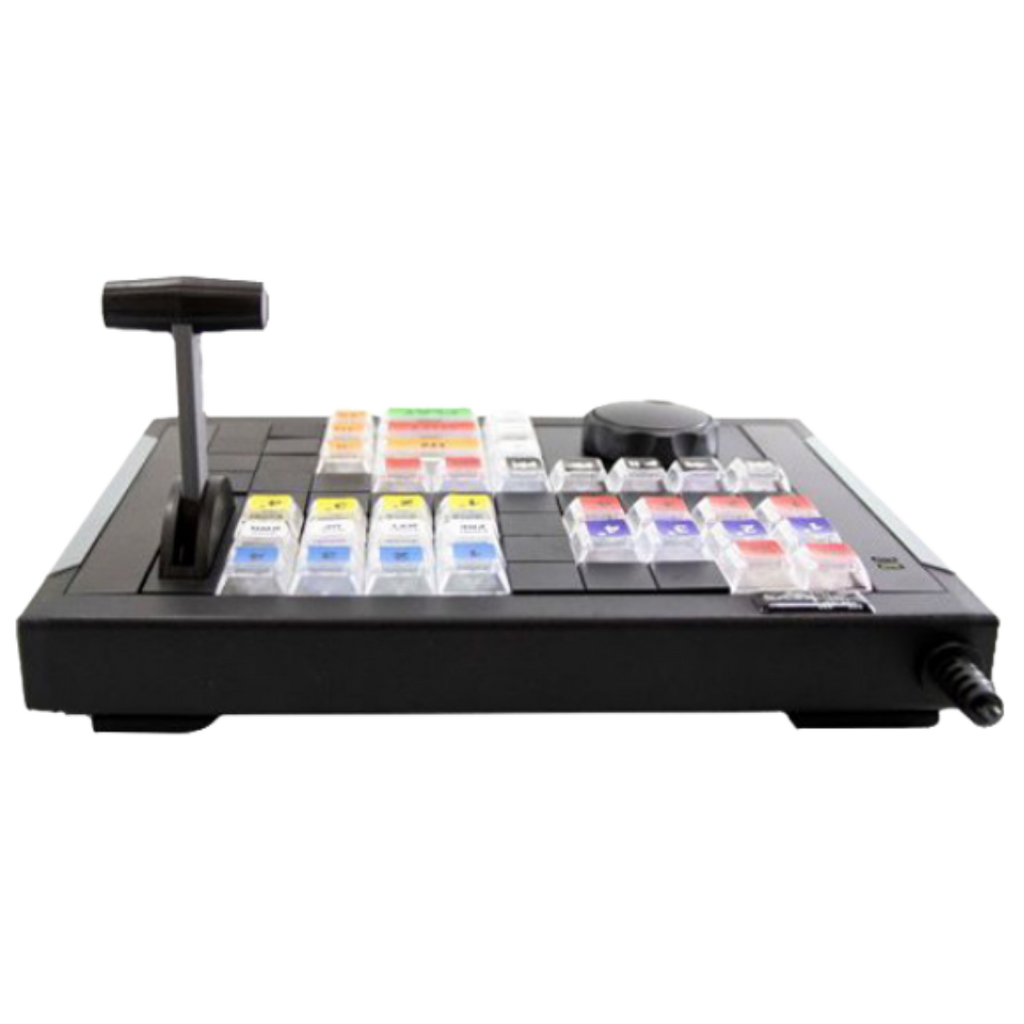

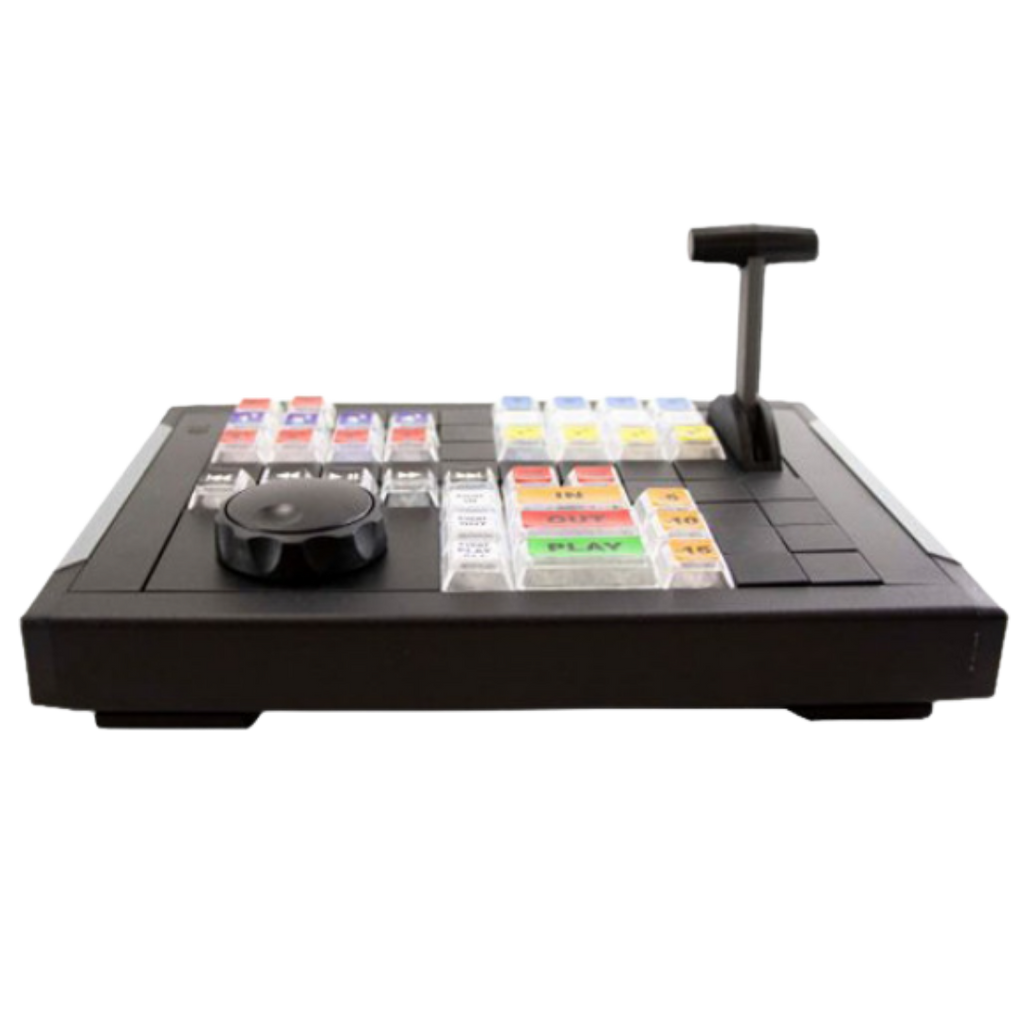

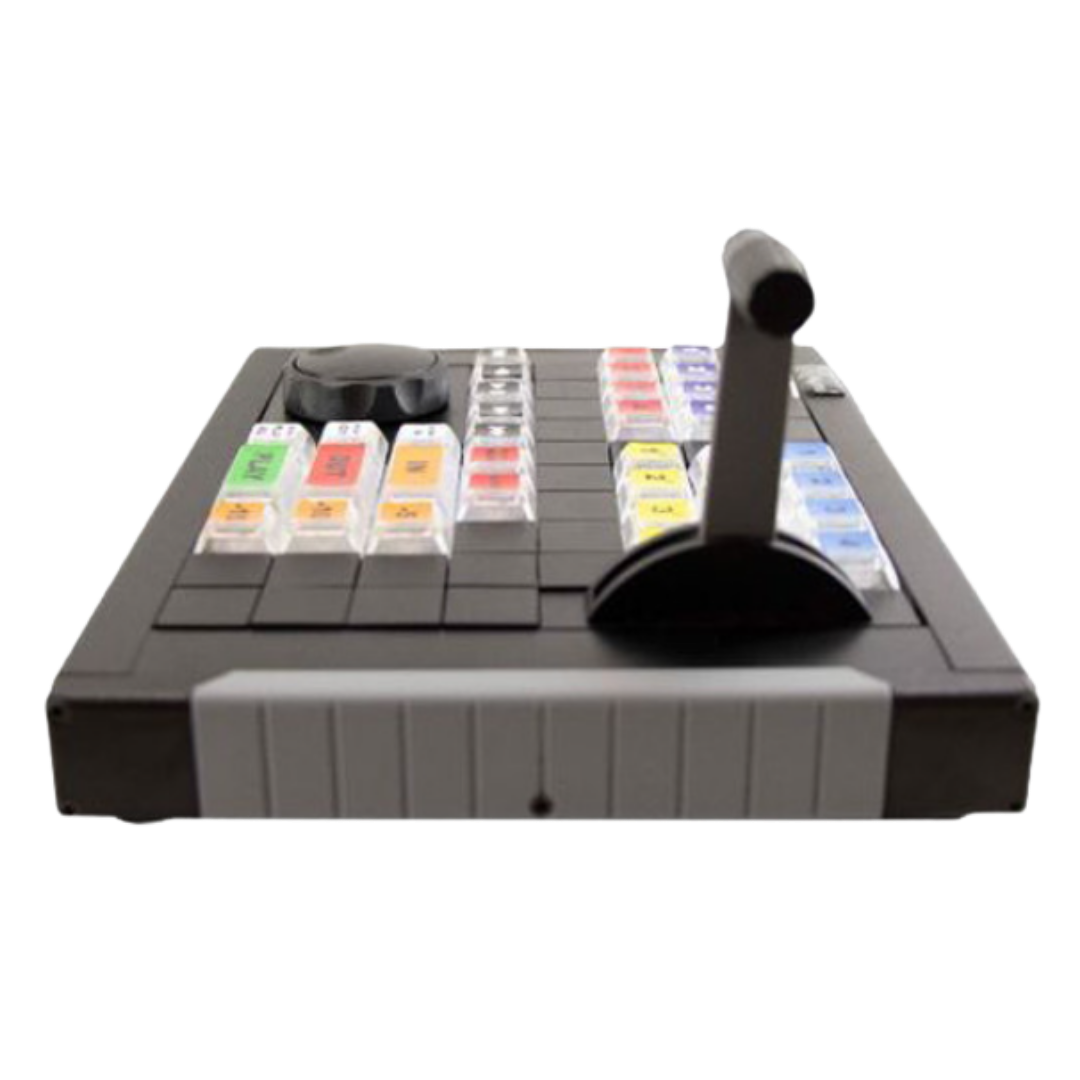

Designed by experienced instant replay operators, the P.I. Engineering XKE-64 Replay Controller allows you tot take full advantage of the features in vMix Instant Replay 22 and later. The built-in jog and shuttle control provides tape-deck-like control over your footage, while the T-bar is well suited for live playback speed control.

You can use the provided vMix template for instant setup of the console's keys and indicators, which allows you to control all four of vMix's instant replay channels and to instantly create clips for highlight reels. You connect the controller to your computer via a USB connection that is compatible with USB 1.1 as well as USB type-C via an optional adapter.

The X-Keys XKE-64 Replay provides a cost-effective instant replay control solution for live streaming or recording sports. The vMix template provides instant setup of all keys and indicators to control all four channels of instant replay in vMix Pro as well as instantly creating clips for multiple highlight reels.

Finished with a solid, heavy duty aluminium case and coated finish, this unit also works very well in low-lit areas with both red and blue back lighting on each key. Smooth, reliable and accurate T-Bar means that you can switch camera shots easily and timed as you require.

Compatible with Windows and Mac with free downloadable programming software, the XKE-64 is perfect for anyone who wants to work with ease and create shortcuts to support and assist with workload.

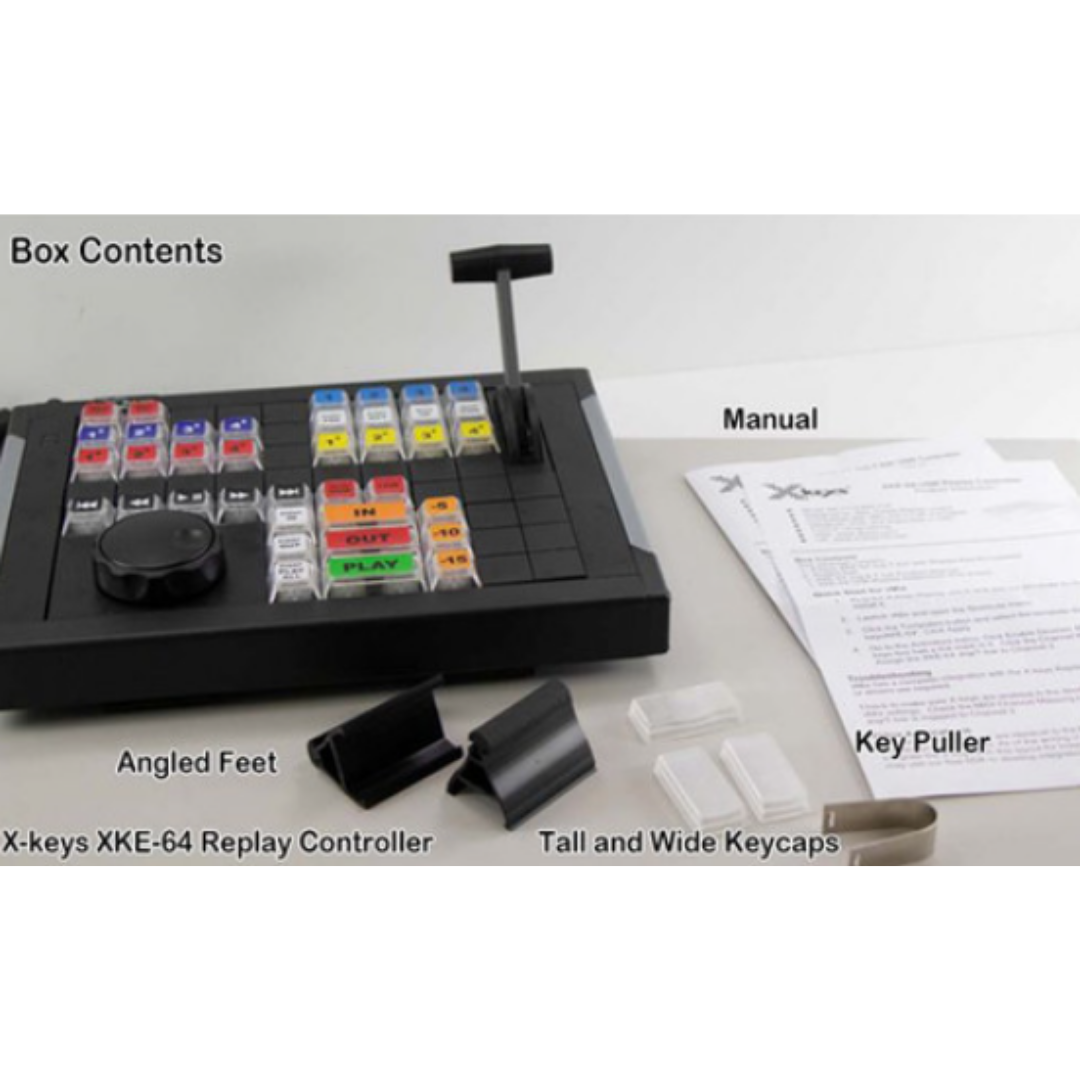

Items Included
  • X-keys XKE-64 Replay Controller
  • Double Key Set (2 Tall, 1 Wide, 1 Key Puller)
  • 2 x Angled Feet
  • 2 x Pre-Printed Legend Sheet
  • 2 x Blank Legend Sheet
  • Limited 1-Year Manufacturer Warranty

Specs

Operating System
Use: Any OS via USB HID
Programming: Windows XP through 10
Emulation Modes
HID Keyboard
HID Mouse
HID Game Controller
HID Multimedia
Controls
T-Bar: Continuously Variable MDM
Jog Knob: 10 Detents
Shuttle Wheel: Spring Return to Center with Seven Programmable Zones in Each Direction
Switch Type
Full-Travel Rubber Dome, Carbon on Gold Contacts, Guaranteed for over 1 Million Operations
Number of Keys
64
Actuation Force
Press: 4.2 oz / 120 g
Hold: 2.1 oz /60 g
Keyboard
Key Cap Size: .625" / 1.6 cm
Space between Keys: 0.75" / 1.91 cm
Backlighting: 1 x Blue, 1 x Red Addressable Beneath Each Key
USB Interface
USB 1.1
Power
USB Port: 5 VDC

Consumption
No Backlight: 50 mA
Blue Backlight Full: 120 mA
Red Backlight Full: 170 mA
All Backlights: 230 mA
Temperature
-4 to 140°F / -20 to 60°C
Memory Capacity
Approximately 21,000 Keystrokes or Commands in Onboard Memory
IP Rating
IP 40
Certifications
FCC Class B
CE
RoHS
WEEE Compliant
Dimensions
9.75 x 7.3 x 1.8" / 248 x 185 x 46 mm
